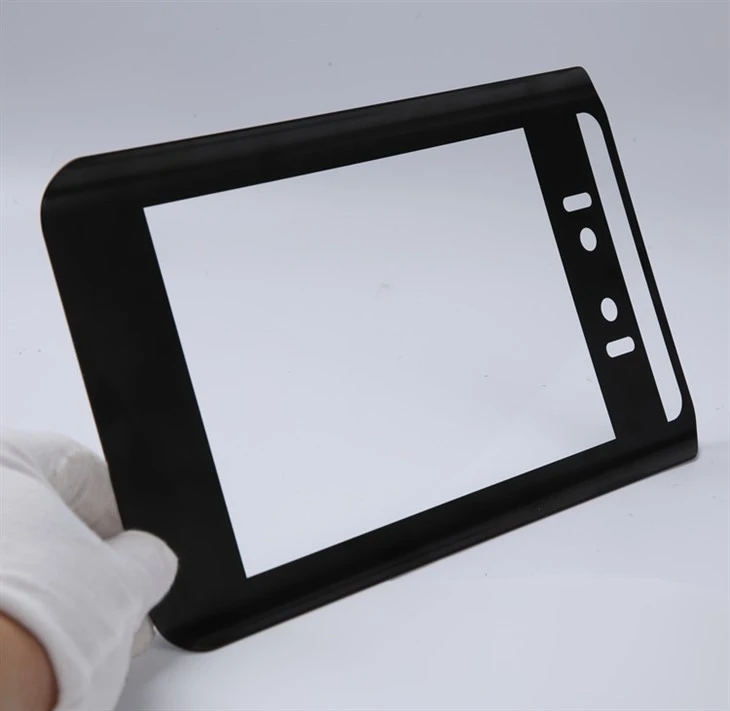

Automotive Display Cover Glass
The automotive display cover glass is the protective guard bond to vehicle screens' center consoles, instrument clusters, rear seat entertainment and head up displays(HUDs). Different from consumer electronics glass, it must can survive under thermal shock, UV exposure and mechanical stress over a decade of automotive service life. The typical material is aluminosilicate or soda lime glass with chemical strengthened to balance impact resistance with optical clarity.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Car Screen Protector - Automotive Display Cover Glass
why automotive display cover glass important?
GL has been supplied cover glass for automotive displays for a long period: Car enviroments are brutal, which si extreme heat, freezing cold, direct sunlight, gloves, coffee spills-And it all has to be last a decade. So we're not just cut and coat but focus on what really matters: Optical clarity with real anti glare, reliable touch through winter gloves and bonding that survives under thermal cycling. From center stacks to instrument clusters, our chemical strengthened glass(0.55~2.0mm, AF/AR/AG options) made for production, not just prototypes.
The material options:
How GL produce them?
Laser pre-cutting
Reduce micro cracks but keep mechanical fitting
01
CNC precision shaping
CNC to finish the outline, R-corners, button holes, and sensor slots. Typically hold tolerance within ±0.05mm.
02
Hot bending
center stacks and instrument clusters curve with the dashboard.
03
Chemical strengthening
Target above 600 MPa for automotive.
04
Coating & Print
AG (anti-glare) gets etched into the surface. AR and AF are sprayed or evaporated on. Silkscreen print
05
The inspection steps
First, visual inspection under adjustable light
Second, dimensional check
Third, fitting
Forth, edge inspection
Fifth, Surface stress test
Sixth, warpage measurement
Seventh, coating adhesion test
Eighth, final clean and dry check
Key Features & Advantages
Enhanced Visual Clarity
Increase high contrast and color fidelity.
Scratch & Wear Resistance
Surface hardness up to 8-9H (Mohs scale).
Anti-Fingerprint & Easy Cleaning
Optional oleophobic and hydrophobic coatings.
High Light Transmittance
Up to 92%, ensuring bright and vivid displays.
Customization Surface Roughness
Available in matte, semi-matte, and glossy finishes.
UV & Chemical Resistance
Suitable for long-term outdoor or industrial use.
Can we trust GL?
FAQ
Q:What CS and DOL values are required for automotive-grade cover glass?
A:CS (Compressive Stress) should exceed 900 MPa. DOL (Depth of Layer) needs to be above 50 μm. These 2 parameters determine how well the glass resists scratches and impact from road debris or daily use.
Q:Why is edge grinding critical for automotive displays?
A: Edge grinding removes micro-cracks created during CNC cutting. Unfinished edges create stress concentration points. When the vehicle vibrates or thermally cycles from -40°C to 105°C, those micro-cracks propagate and the glass fails. Target Ra ≤ 0.8 μm after polishing.
Q:What coating stack works best for direct sunlight readability?
A:AR (Anti-Reflective) + AF (Anti-Fingerprint) + optional AG (Anti-Glare). AR cuts surface reflection from 8% down below 1%. AF maintains contact angle above 110° for smudge resistance. AG diffuses reflections so the driver actually sees the map, not the glare.
Q:How flat does the glass need to be before lamination?
A:Flatness must hold at ≤ 0.05 mm over 100 mm length. Exceed that tolerance and the optical adhesive bonds unevenly. Result: bubbles, Newton rings, or touch sensor misalignment. All three mean scrap.
Logistics & Packaging
Packaging
Multi-layer protective packaging to prevent scratches or breakage.
Shipping
Sea, air, train, special line and express.
Lead Time
10-15 working days depending on order volume.
Samples
Free for stock samples, charge for custom samples.
After-Sales Support
Our professional team provides full technical support, from material selection to installation guidance. If any product issue arises, we offer prompt replacement or refund service to ensure customer satisfaction.
Why Choose Us
15+ years of experience in glass processing and display protection.
Advanced etching and coating facilities.
Tailor-made solutions for industrial, commercial, and consumer display projects.
Stable supply chain and reliable after-sales service.
