Industrial Display Glass

For industrial display glass, it's not just a piece of glass to protect the screen but with customizable option, it can offer premium appearance to the whole product.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

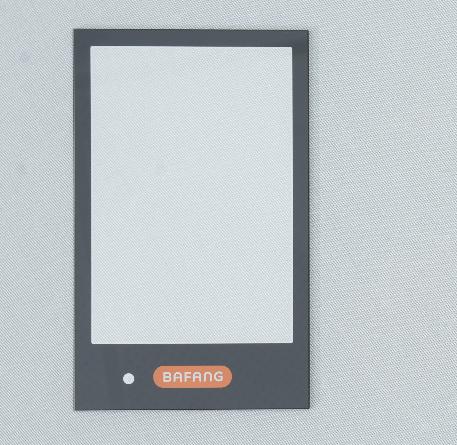

Industrial Display Glass For Screen

Why choose GL industrial display glass?

In today applications, the industrial display glass for screen isn't just play the role as the protector but with customizable solutions including sizes, shapes, patterns, colors and different coatings to offer premium appearance to the whole product.

In GL, we offer full processes done in house including cutting, CNC processings(edging, drilling), tempering(chemical and thermal), silk screen print(resin ink and ceramic ink), coatings(anti reflection, anti glare, anti fingerprint), bonding(3M tapes) and lamination(foils, explosion proof sheet) to make sure every piece and every batch of display glass keep in same high quality level.

AR Cover Glass

what's the applications of industrial display glass?

Consumer Electronics

Mainly focus on indoor applications, thin thickness, AF coatings with silk screen print.

Medical Device

Usually 1-2mm thickness aluminosilicate glass chemically strengthened, AG + AF treated.

Vehicle Console Screen

Soda lime glass or aluminosilicate, chemically tempered, silk screen print, AR+AG+AF coatings.

Vending Machine/Kiosk

Outdoor application thickness 3.0mm thermally tempered, AG treated.

Industrial Controller

0.55-2.0mm chemical tempered AGC / Aluminosilicate glass with silk screen print, AR+AG+AF applicable.

Industrial Display glass Inspections

1.Appearance by visual for every piece to avoid surface problem under ambient light.

2.Paint adhesion test for the ink and colorimeter to testify if color meet golden sample.

3.Tempering test: Particle/IK test for thermal tempered, CS/DOL for chemical strengthened.

4.Coatings: VLT, haze, gloss and roughness for AG.

Light transmittance in different spectral bands and adhesive ability for AR.

Water angle test and durable test for AF.

Key Features & Advantages for industrial display glass

Optional transmittance

Different glass substrate can be selected with AR coatings in different spectral bands to meet transmittance requirements.

Scratch & Wear Resistance

Soda lime:Surface hardness up to 6H (Mohs scale).

Aluminosilicate:Surface hardness up to 8-9H (Mohs scale).

Anti-Fingerprint & Easy Cleaning

AF anti fingerprint oleophobic and hydrophobic coatings.

Shapes & Sizes

Precision processing to meet specific shapes and sizes with tolerance +/-0.05mm.

Customization Surface Roughness

AG treatment Available in matte, semi-matte, and glossy finishes.

UV & Chemical Resistance

Suitable for long-term outdoor or industrial use.

Customization & Service

We provide Hot Bent Glass for Automotive Display OEM/ODM customization to meet your specific project requirements.

Customization Options:

Size, thickness (0.02~3mm)

Shapes, hole drilling and edge design

Surface gloss and haze level adjustment

Logo printing and color coating

Optical bonding and lamination integration

Quality Assurance & Testing

Every piece of industrial display glass undergoes strict quality control and optical testing, including:

Light transmittance & haze measurement

Surface roughness & uniformity inspection

Scratch and hardness testing

Environmental & temperature endurance testing

All products comply with RoHS, REACH, and ISO9001 standards.

FAQ

Q:What kind of coatings can be added to industrial display glass?

A:All AG(Anti glare), AR(Anti reflective) and AF(Anti fingerprint) coatings can be added to glass surface single side or double sides.

Q:What's the tolerances can be controlled?

A: The shape within +/-0.05mm, hole location and silk screen print +/-0.15mm.

Q:Can samples be offered before mass production?

A:No matter samples ordered or not, we will still offer samples before because it's the key important to avoid batch problem.

Q:What should be offered to custom the industrial display glass?

A:The drawing in CAD will be good enough and your ideas included, so we will offer the best solutions to you.

Logistics & Packaging

Packaging

Multi-layer protective packaging to prevent scratches or breakage.

Shipping

Sea, air, train, special line and express.

Lead Time

10-15 working days depending on order volume.

Samples

Free for stock samples, charge for custom samples.

After-Sales Support

Our professional team provides full technical support, from material selection to installation guidance. If any product issue arises, we offer prompt replacement or refund service to ensure customer satisfaction.
