Switch Panel Glass

In GL, we offer tempered glass customization service for switch panels, which is widely used in wall switches, smart control panels and home / office devices. The switch panel glass can offer strong impact and scratch resistance, excellent surface finish and optional anti fingerprint / anti glare coatings. The precision cut for standard and custom sizes(single / double / multi-gang) to fit touch, wifi smart and traditional switches. The custom silkscreen print, logos or colors available to match your brands.

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

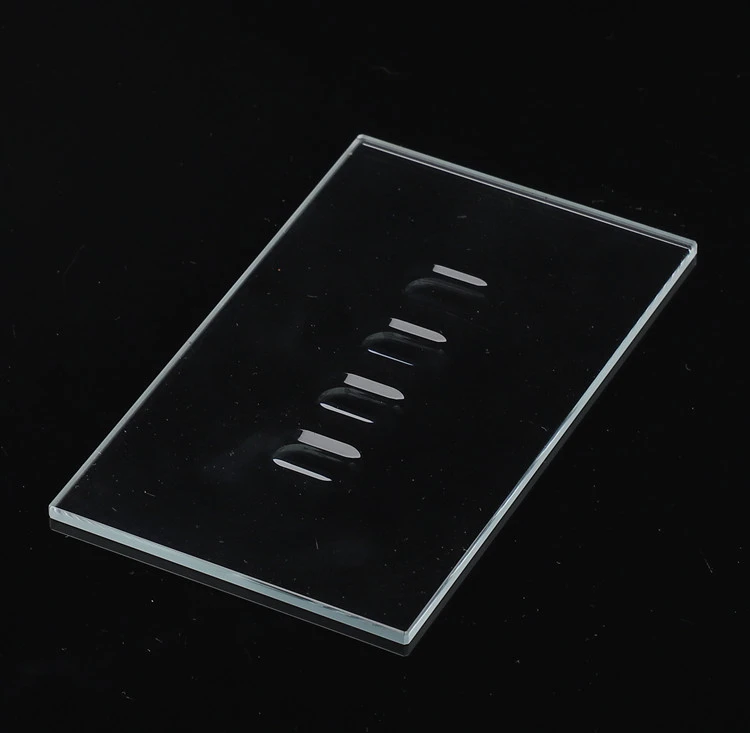

Switch Front Guard - Switch Panel Glass

how does switch panel glass produced?

1.Cutting & Sizing

Use CNC or laser precision cutting for raw glass sheets into design sizes & shapes(Rectangular, square or any custom shape).

Reserved edge allowance for subsequent processing and tolerance controlled within +/-0.02mm.

2.Edge processing(Chamfering / C corner)

The CNC grinding machines to process edge rounding or C corner finishing to make smooth, safe edges, prevent inquiry during handling or installation.

It also improves impact resistance by reduce edge micro cracks.

3.Grinding & Polishing

The special grinding brushes or cerium oxide polishing slurry being used to finely polish cut and chamfered edges and surfaces.

Removes micro cracks and burrs, enhances surface smoothness and the glass for strengthening and coating.

4.Tempering

When glass less than 2mm, we recommend to use chemical strengthening to get better flatness.
When glass for 2mm above, thermally tempered will be a better choice for safety.

5.Cleaning & Drying

Ultrasonic cleaning and deionized water rinsing remove surface oils, dust and salt residues.
Hot air or infrared drying ensures a high level of cleanliness for subsequent coating/printing.

6. Silk Print(Optional for decorative or marked panels)

Use specialized inks for screen print on glass(custom colors)
Printed patterns are simi cured or fully cured by tunnel furnace or IR drying, forming permanent logos, icons or touch indicator areas.

Why your glass can order from us without any worry?

CNC Machining

Tolerance up to +/-0.02mm

Tempering

Chemical & thermal tempering optional with excellent hardness, impact & scratch resistance

In house silk print

Full automatic print in dustfree workshop in house, strict quality control

AR / AG / AF Coating

All done in house, no any worry in batch difference

Strict Quality Inspection

Dimensions, stress, colors, IK, tempering all need to be done before shipment.

Key Features & Advantages

Constant Visual Clarity

High quality material source guarantee constant optical performance

Scratch & Wear Resistance

Surface hardness up to 6-8H (Mohs scale) depends on materials.

Anti-Fingerprint & Easy Cleaning

Optional oleophobic and hydrophobic coatings.

Transmittance

Full set of material can offer different transmittance for selection.

Customization Surface Roughness

Available in matte, semi-matte, and glossy finishes.

UV & Chemical Resistance

Suitable for long-term outdoor or industrial use.

What's your options we can succeed?

We provide switch panel glass OEM/ODM customization to meet your specific project requirements.

Customization Options:

Size, thickness (0.2-22mm)

Shape, hole drilling, and edge design

Surface gloss and haze level adjustment

Logo printing and color coating

Optical bonding and lamination integration

Quality Assurance & Testing

Every piece of switch panel glass undergoes strict quality control and optical testing, including:

Light transmittance & haze measurement

Surface roughness & uniformity inspection

Scratch and hardness testing

Environmental & temperature endurance testing

All products comply with RoHS, REACH, and ISO9001 standards.

FAQ

Q:What types of switch panel glass can GL customize?

A:We supply and customize tempered glass for regular wall switches, smart touch switches, hotel switch panels and smart home control panels. Custom size, shape, thickness, silk screen printing, reccess holes and edge treatment are all available.

Q:Do you support OEM and ODM service for switch panel glass?

A: Yes. We offer full OEM and ODM service. We can produce according to your drawings, samples or design ideas, and make exclusive logo and pattern printing for your brand.

Q:What surface treatments can you provide for switch panel glass?

A:We provide tempering, fine edge polishing, anti-fingerprint coating, anti-glare coating, silk screen printing and color back painting to meet different usage and aesthetic needs.

Q:Is your switch panel glass qualified for smart switch installation?

A:All our switch panel glass is high-precision processed with stable flatness, perfect hole position and good touch sensitivity. It fully fits capacitive touch switches and meets residential, commercial and hotel project standards.

Logistics & Packaging

Packaging

Multi-layer protective packaging to prevent scratches or breakage.

Shipping

Sea, air, train, special line and express.

Lead Time

7-10 working days depending on order volume.

Samples

Free for stock samples, charge for custom samples.

After-Sales Support

The professional team offers fully technical support from material selection to glass assembly. If there any problem, our after sale team offer prompt response to ensure customer's satisfaction.
